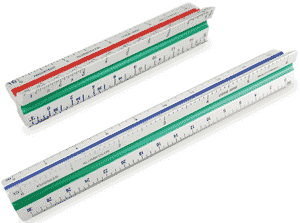

Color Coded Scales
 |
|
Color Coded Drafting Scales are solid
aluminum with a different color coded groove on each side (red, green,
blue), easily identifying your calibrations.
Calibrations are imprinted with the Alumicolor® anodizing process, which makes all markings part of the
aluminum, giving each scale a smooth, tick-free finish that wears well
and resists being cleaned off with cleaners or solvents.
 4" and 6" architect and engineer scales! |
|
End View
|
|
|
|
| Code |
Version |
Calibrations |
Price |
Colors |
| 3054 |
4" Architect |
16, (1/8, ¼), (3/32, 3/16),
(3/8, 3/4), (½,1), (1½, 3) |
$10.95 |
Silver |
| 3254 |
4" Engineer |
10, 20, 30, 40, 50, 60 parts per inch |
$10.95 |
Silver |
| 3056 |
6" Architect |
16, (1/8, ¼), (3/32, 3/16),
(3/8, 3/4), (½,1), (1½, 3) |
$11.95 |
Silver |
| 3256 |
6" Engineer |
10, 20, 30, 40, 50, 60 parts per inch |
$11.95 |
Silver |
| 3051 |
12" Architect |
16, (1/8, ¼), (3/32, 3/16),
(3/8, 3/4), (½,1), (1½, 3) |
$19.95 |
Silver |
| 3251 |
12" Engineer |
10, 20, 30, 40, 50, 60 parts per inch |
$19.95 |
Silver |
| 3451 |
30cm Metric Architect |
1:100, 1:200, 1:250, 1:300, 1:400, 1:500 |
$19.95 |
Silver |
| 3453 |
30cm Metric Engineer |
1:1, 1:2, 1:5, 1:10, 1:20, 1:50 |
$19.95 |
Silver |
| 3455 |
30cm Metric Mechanical |
1:20, 1:25, 1:50, 1:75, 1:100, 1:125 |
$19.95 |
Silver |
|
|
- Colors: Silver with red, blue and green colored grooves.
- Packaging: Triangular plastic tube with hang cap.
- Inner-pack count 4” & 6” Color-Coded Solid Drafting Scales: 20 pcs; order in multiples of 20 pieces for faster deliveries!
- Inner-pack count for 12” & 30 cm Color-Coded Solid Drafting Scales: 10 pcs; order in multiples of 10 pieces for faster deliveries!
- 0.917" wide per side.
|
|
|
